Arch Polycarbonate Carport
7
Arch Polycarbonate Carport

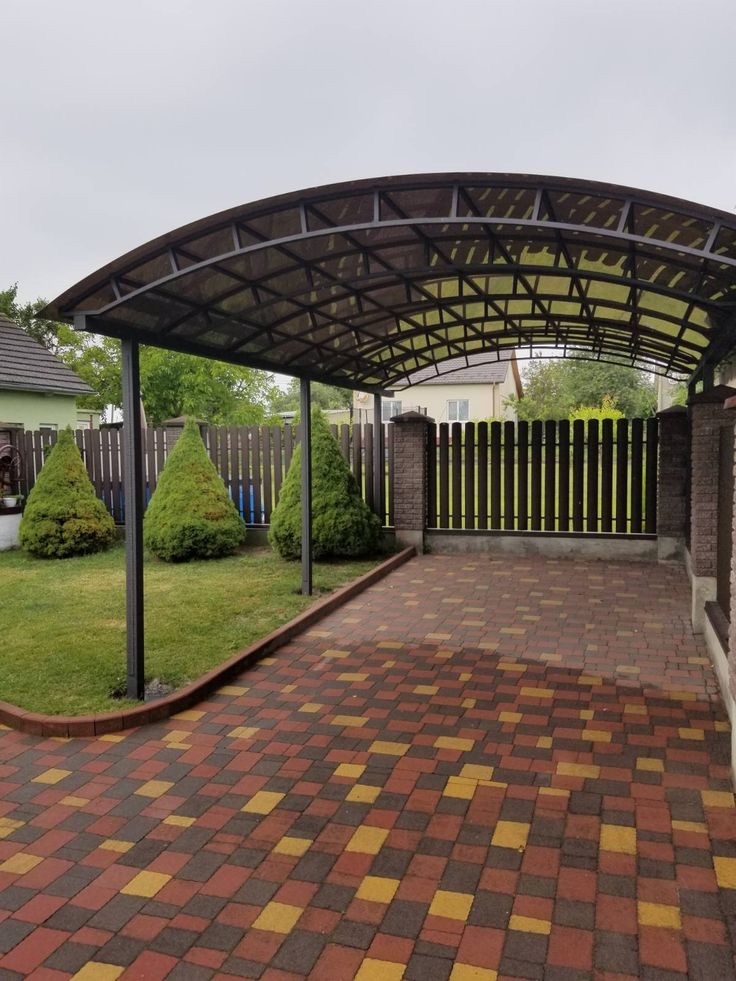

SP-CP-ARC Cantilever aluminum carport with a curved polycarbonate sheet roof. Elegant arched profile, no front posts, unobstructed vehicle access. Available in single (1 car), double (2 cars) and multi-bay commercial configurations. Wind rated Class 7 (100 km/h).
Factory Direct Price — MOQ 1 Set
From $1,500 / set
Price varies by dimensions, configuration and finish. Contact us for a detailed quote.
Heading
Frame Material
6063-T5 Aluminum Alloy
Surface Treatment
AkzoNobel Powder Coat, 60μm
Louver Adjustment
N/A — Fixed Arch Polycarbonate Roof
Wind Load Rating
Class 7 (100 km/h)
Snow Load Rating
100 kg/m²
Service Life
30-50 Years
Lead Time
25–35 Days
Product Features
Precision.
Performance.
Adjustable Shade
Control sunlight and ventilation by adjusting louver angles from 0° to 135°. From full sun to complete shelter in seconds.
Weather Sealed
Integrated gutter channels rainwater efficiently. EPDM seals prevent water ingress at all articulation points.
Wind & Snow Rated
Engineered structural performance: wind up to 120 km/h, snow load up to 150 kg/㎡. Certified to international standards.
Modular Assembly
Pre-fabricated components for fast, clean installation. Minimal on-site work required. Compatible with standard construction practices.
Premium Finishes
Powder coating in standard RAL colors. Wood grain transfer printing available. Custom colors on request.
Sustainable
100% recyclable aluminum. AkzoNobel water-based powder coating. Minimal environmental footprint across the full lifecycle.
Technical Specifications
Built to
Exacting Standards
Bay Configurations
- Single: 3,600mm wide × 5,000mm deep
- Double: 5,500mm wide × 5,000mm deep
- Multi-bay: commercial on request
- Height at eave: 2,100mm standard
- Custom dimensions available
Structural System
- 6063-T5 aluminum cantilever arm
- Main beam + secondary cross-bars
- 150×80mm rear post sections
- Anchored to concrete with base plate
- Wind rated Class 7 (100 km/h)
Polycarbonate Panel
- 8mm twin-wall polycarbonate
- Coextruded UV protection layer
- 10-year manufacturer warranty
- Colors: Clear / Bronze / Grey / Opal
- Light transmission: 30–80%
Frame Finishes
- Bronze (standard — matches PC sheet)
- Silver RAL 9006
- Anthracite RAL 7016
- Black RAL 9005
- Custom RAL on request
